Systems 01 to 06

Railing systems.

Glass, cable, one line and picket: six railing systems, each designed, fabricated and installed by AGS for interior and exterior work. Apex, the base shoe glass system, is the most popular.

Request drawings or a quote

No.

Installed

System

From the brochure

01

Curved glass guard in a base shoe around a two-storey atrium

Most popular

AGS Apex Base Shoe System

Base shoe glass railing system. Glazing infills from ½ in. to 13/16 in. in a base shoe, on engineered anchoring.

Infill — ½ in. to 13/16 in. glazing
Mounting — Base shoe, engineered anchoring
Use — Interior and exterior

Open system

02

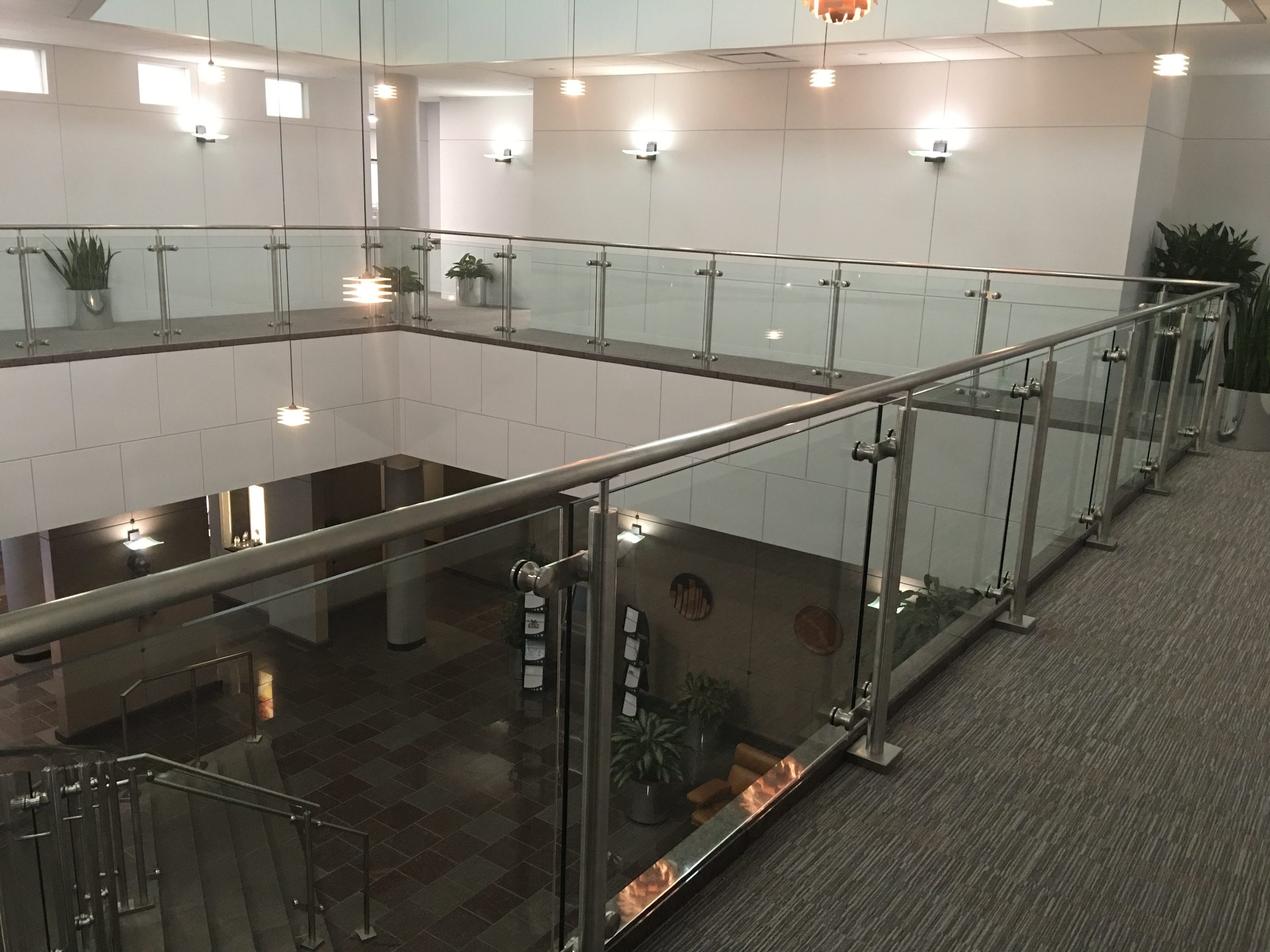

Post and clip glass railing with a round stainless top rail around an atrium balcony

AGS Vertex Post & Clip System

Post and clip glass railing system. Tempered or laminated glass in glass clips between posts, with multiple top rail configurations.

Glass — Tempered or laminated
Top rail — Multiple configurations
Finish — Stainless or powder coated

Open system

03

Glass guard fixed with exposed standoffs along a blue stair, with a stainless handrail

AGS Elevate Standoff Guardrail System

Standoff guardrail system. Clean, floating glass on exposed standoff hardware, in aluminum or stainless steel.

Hardware — Exposed standoffs
Material — Aluminum or stainless steel
Use — Stair, mezzanine, balcony

Open system

04

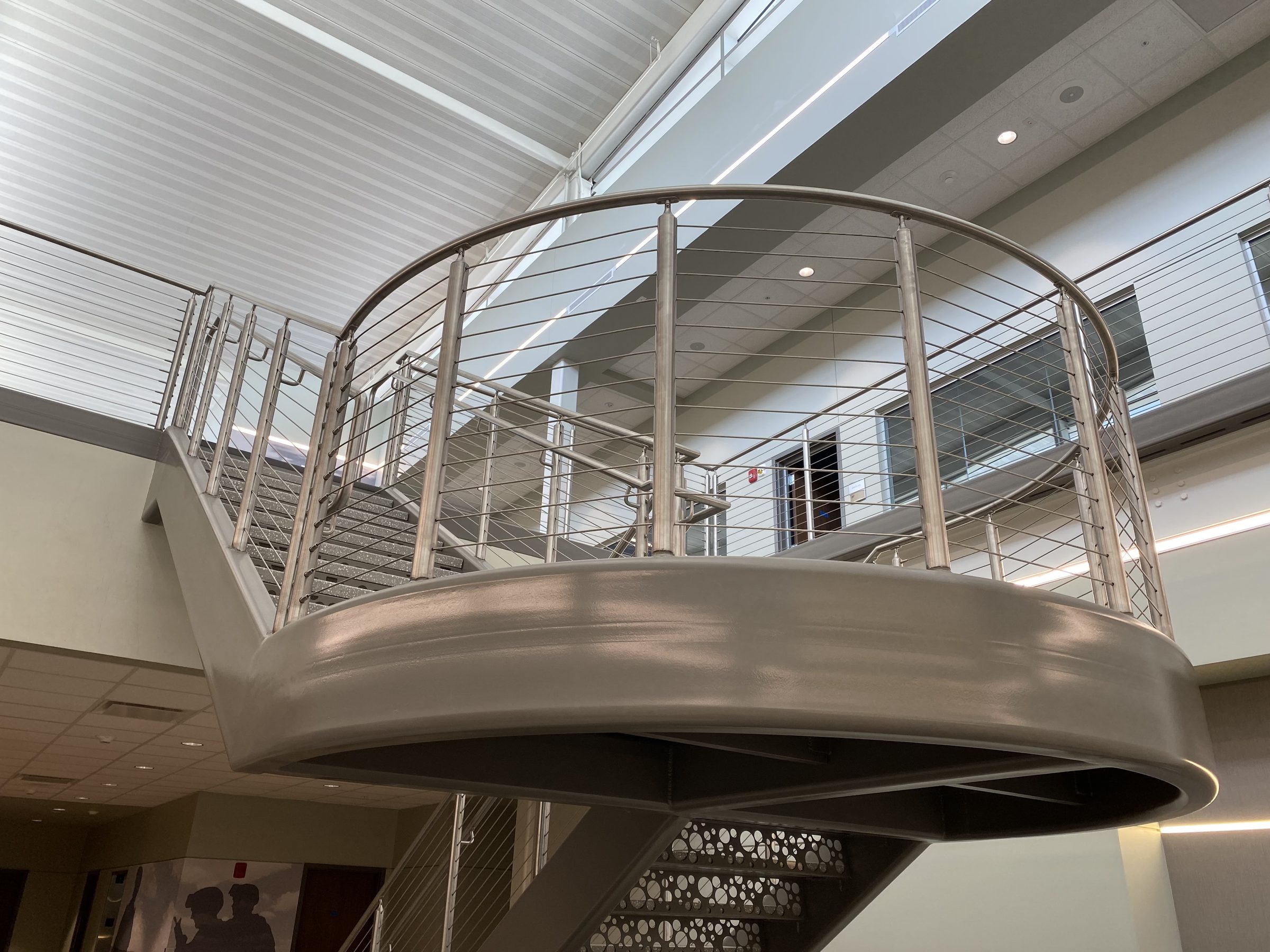

Stainless cable rail around a round landing above an open stair

AGS Ascent Cable Rail System

Cable rail system. Durable stainless steel cables, with multiple post and top rail configurations.

Infill — Stainless steel cables
Posts and rail — Multiple configurations
Finish — Powder coated or stainless

Open system

05

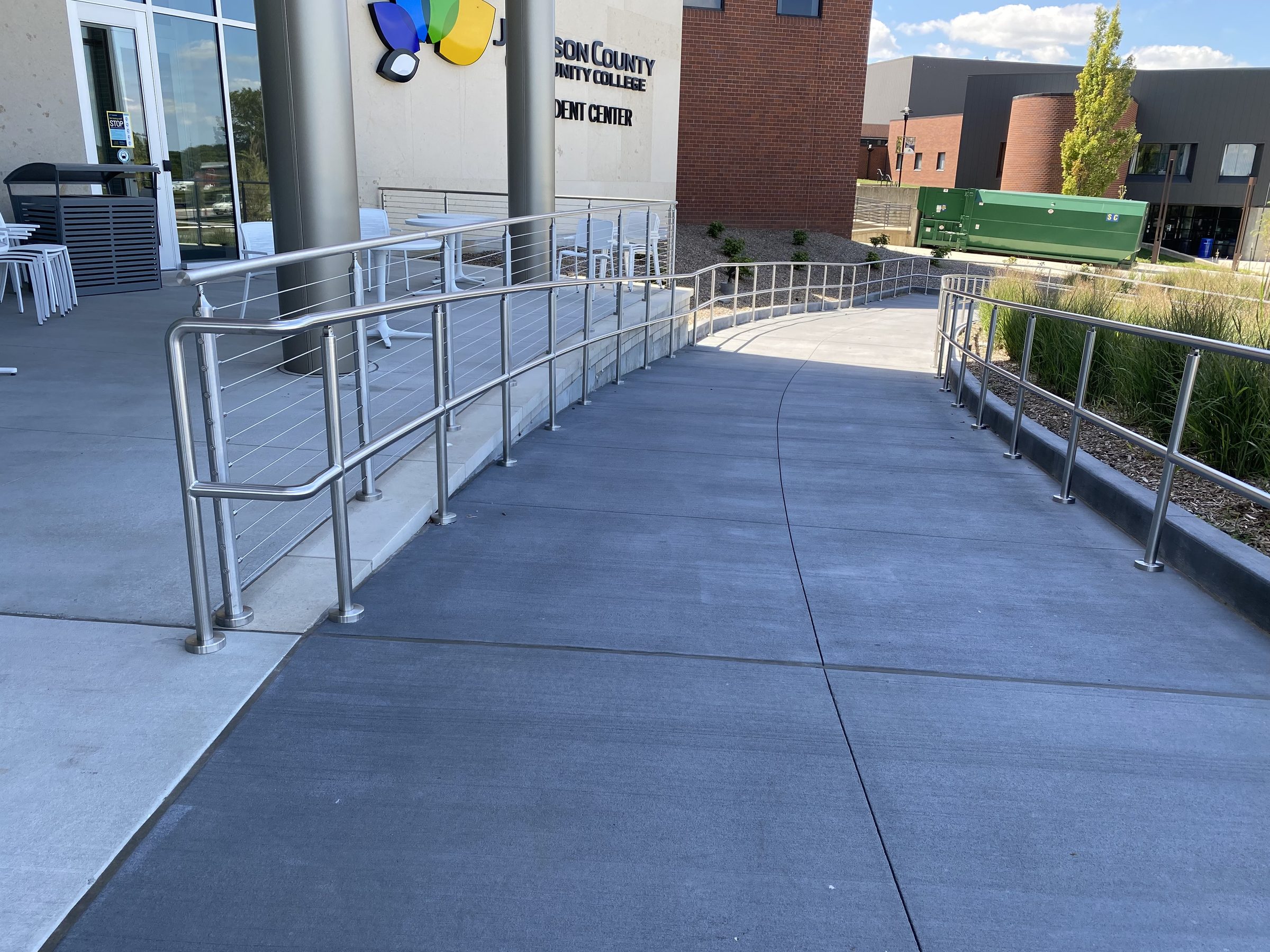

Stainless rails on posts along an exterior ramp

AGS Horizon One Line Rail System

One line rail system. One rail in aluminum or stainless steel, on posts or wall mounted.

Material — Aluminum or stainless steel
Mounting — Multiple options, wall mount
Use — Interior and exterior

Open system

06

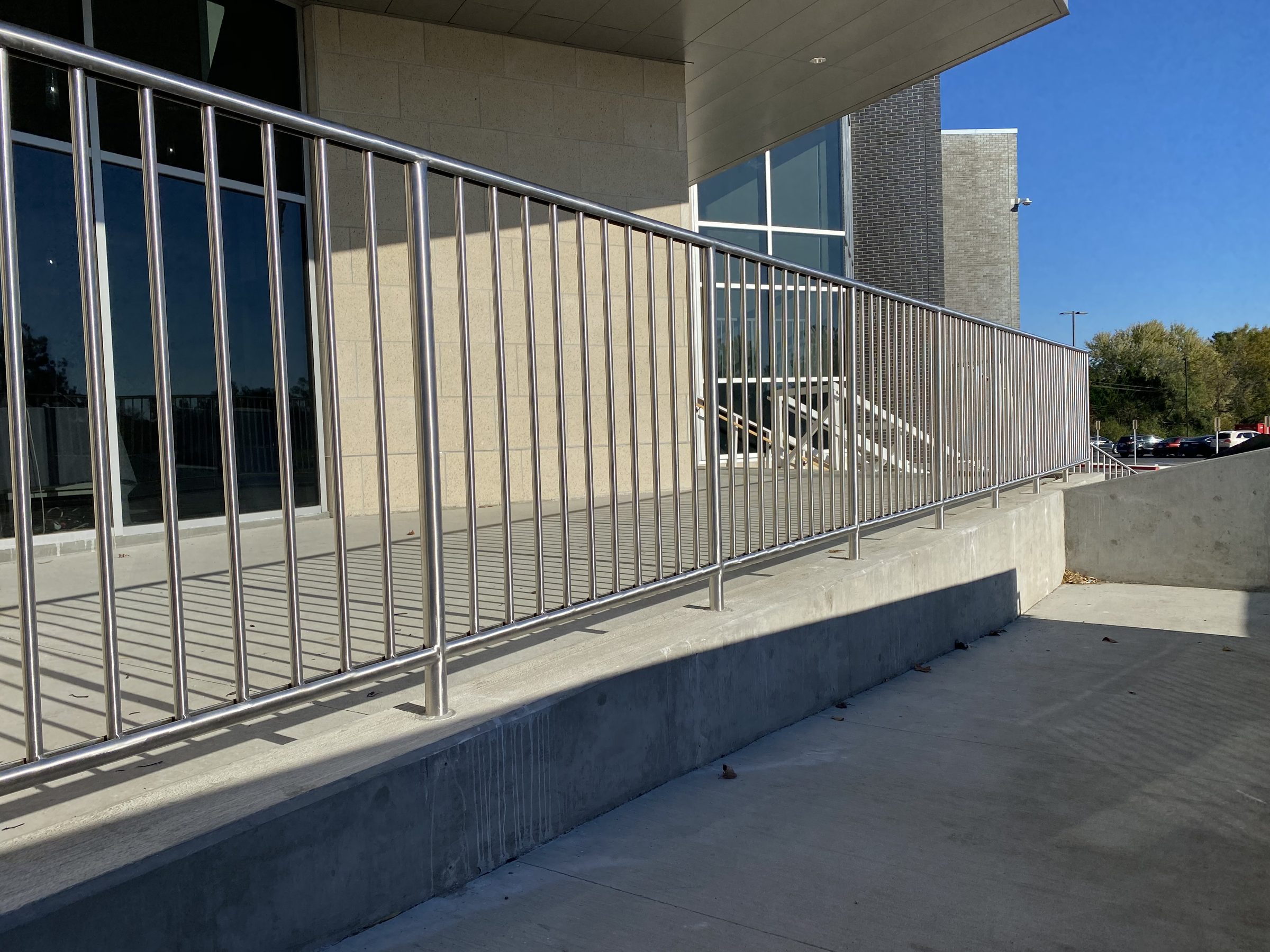

Stainless picket rail along an exterior ramp

AGS Summit Picket Rail System

Picket rail system. Pickets in aluminum or stainless steel, with multiple top rail configurations.

Material — Aluminum or stainless steel
Top rail — Multiple configurations
Use — Interior and exterior

Open system

General notes

Heights and openings every sheet is drawn to.

42 in.

Minimum guard height at open sides of walking surfaces. IBC 1015.3.

34–38 in.

Handrail height above stair nosings and ramp surfaces. IBC 1014.2.

4 in.

Largest sphere that may pass through a guard below its required height. IBC 1015.4.

Values from the International Building Code for commercial occupancies; the governing code and the project's engineer decide. [Placeholder] Confirm the code edition AGS works to.

Submittals and pricing

Request drawings or a quote.

Send the drawings, the bid date and the systems you are considering. [Placeholder] AGS replies within one business day.

Request drawings or a quote

Or call (816) 756-0147 or write to info@agskc.com.
